Prime focus dish polar mounts. Standard and inclined orbit.

Primesat PR1418S

Polar mount for 1.2 – 1.5m prime focus dishes

This motor unit is a Primesat PR14S polar mount with Jaeger Superjack actuator.
The polar mount is dipped galvanised and includes a large ring to fit the curved back of most prime focus dishes.
All of the bolts and nuts are stainless steel and the elevation adjusters are made of brass.
A genuine 36-inch heavy duty Jaeger Superjack HARL-3618+ actuator is an optional extra.
The collar is designed to fit a pole diameter of 100mm
The diameter of the ring is 660mm(hole center to hole center)
There are 5 holes in the ring, equally spaced to bolt to the dish reflector.
Part number PR1418S is the polar mount including the actuator.
Part number PR14S is the polar mount excluding the actuator.

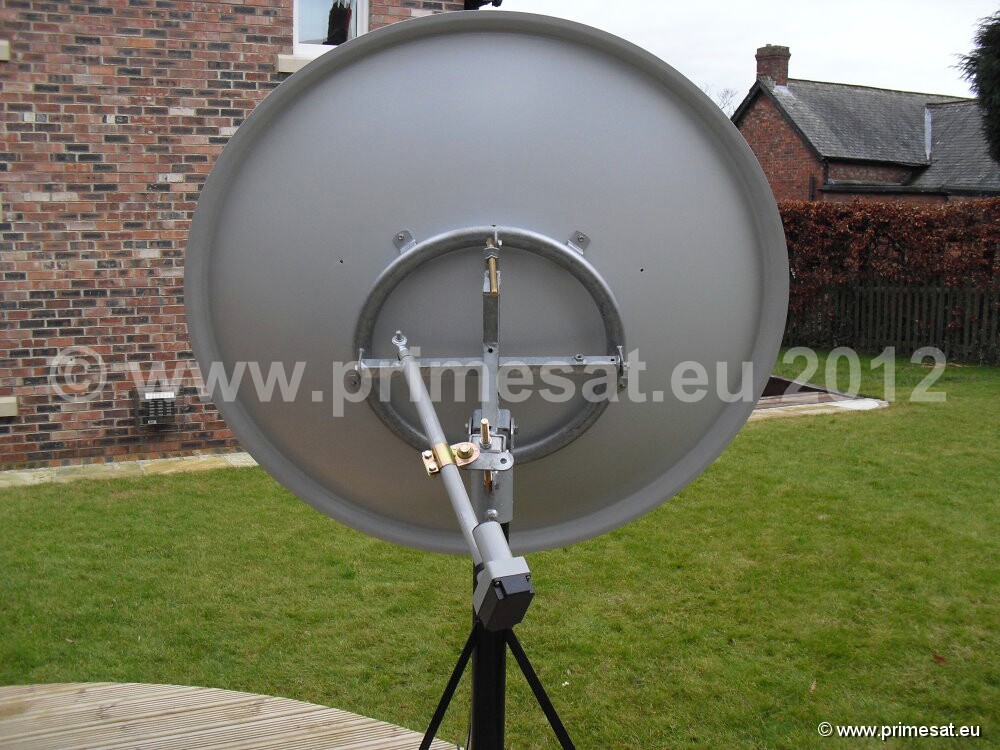

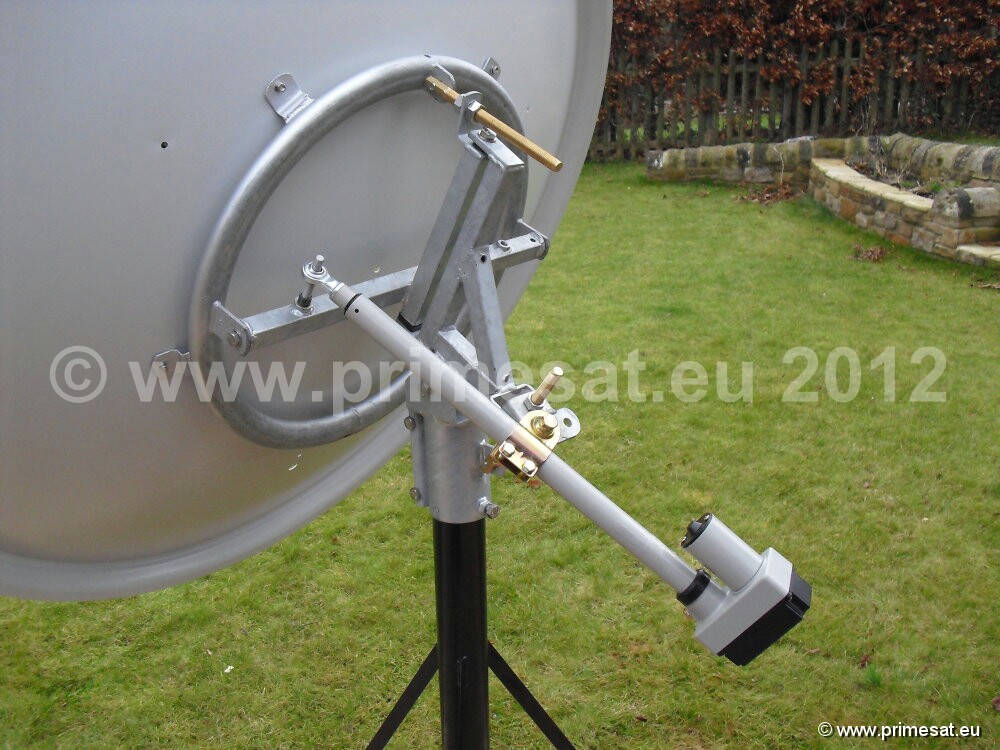

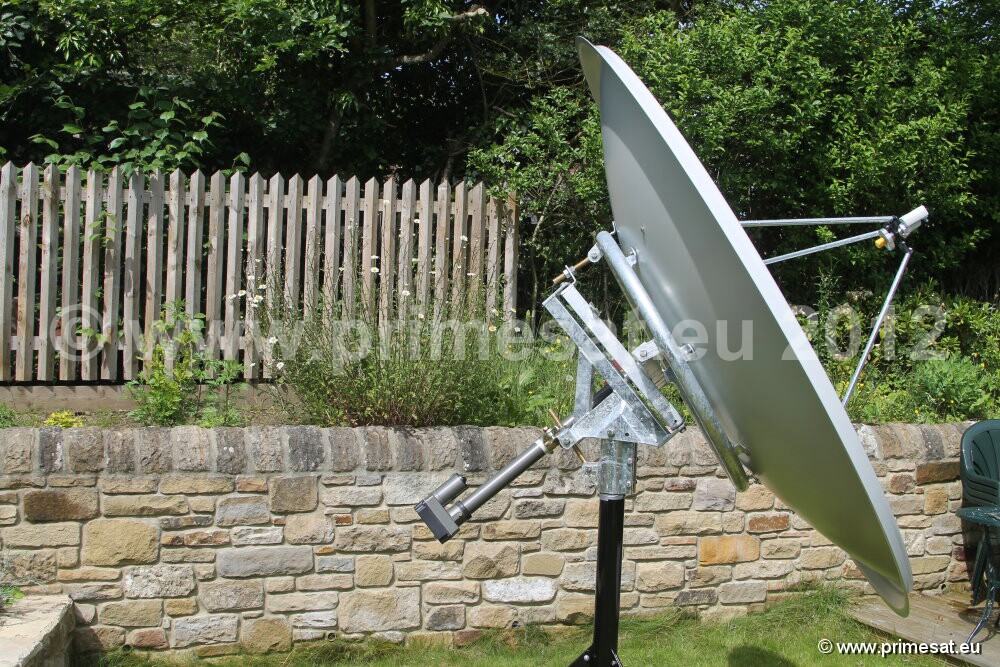

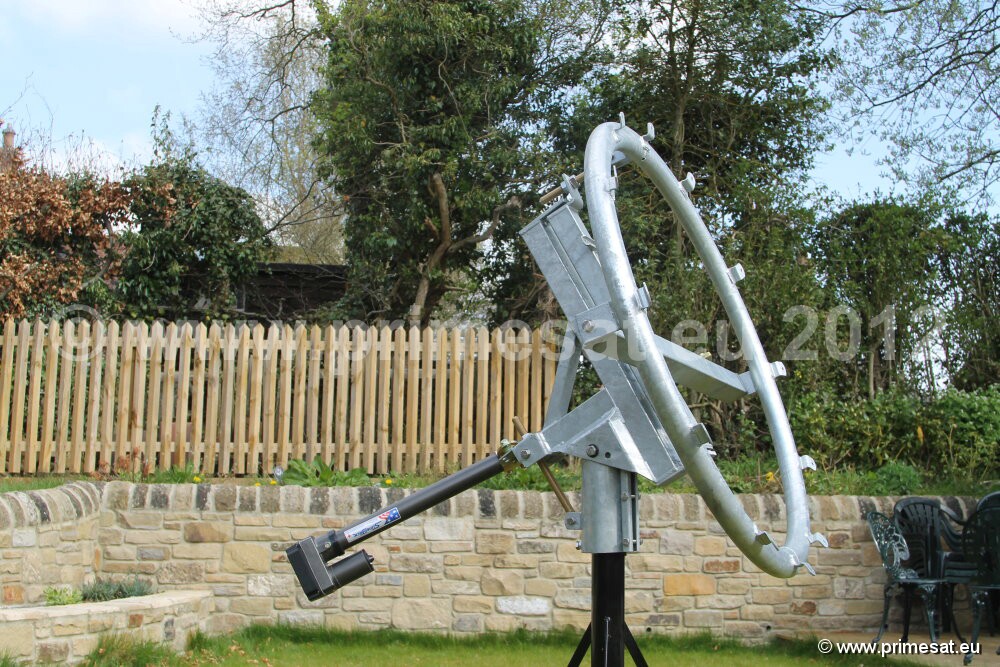

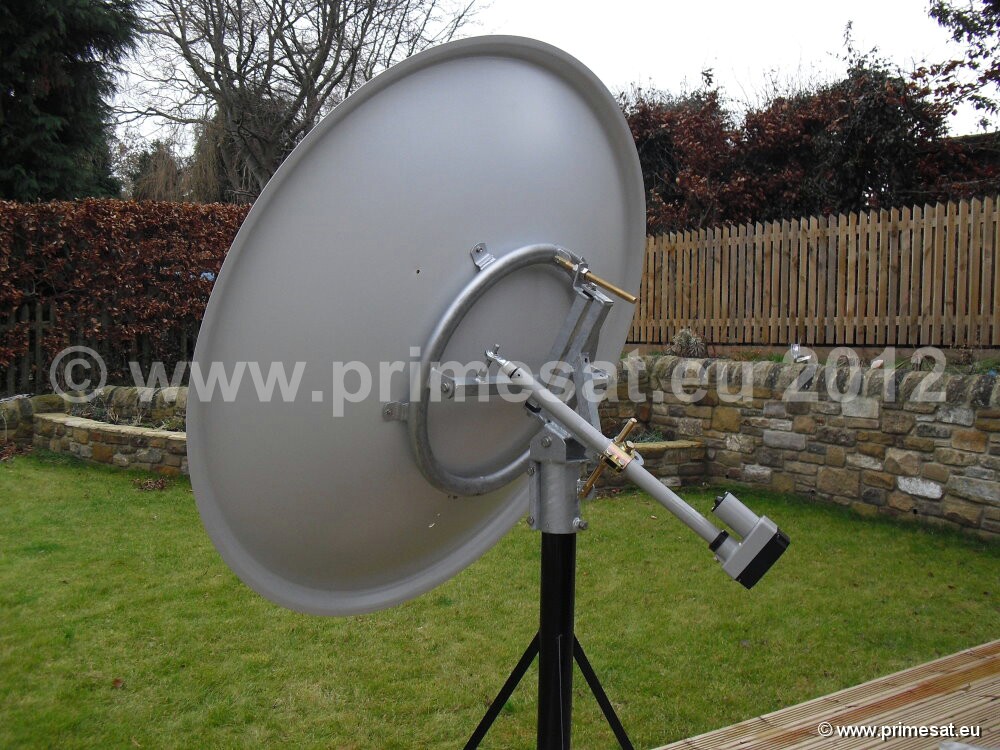

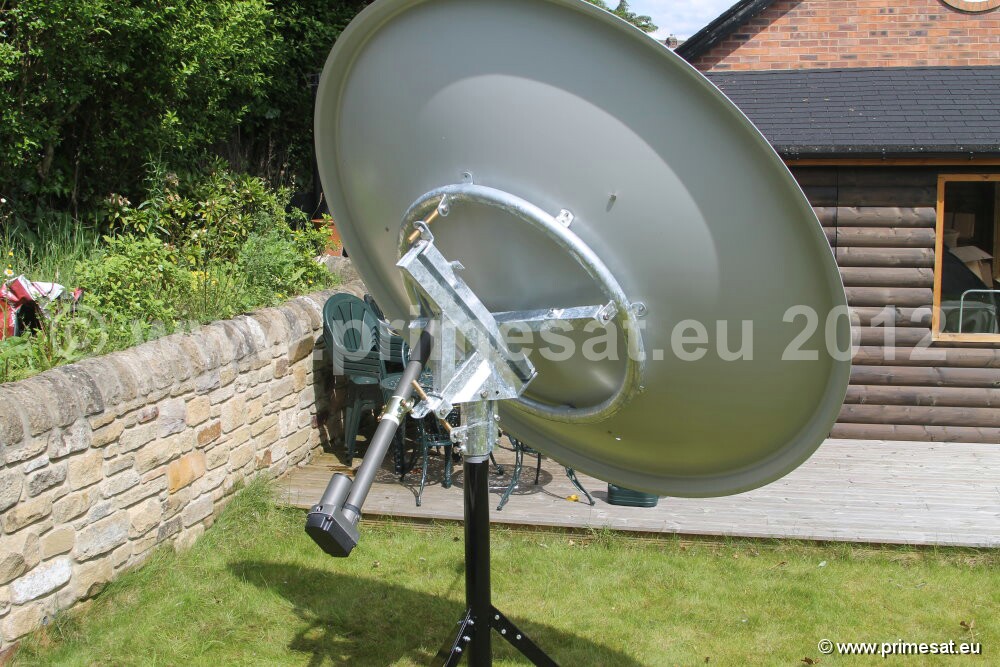

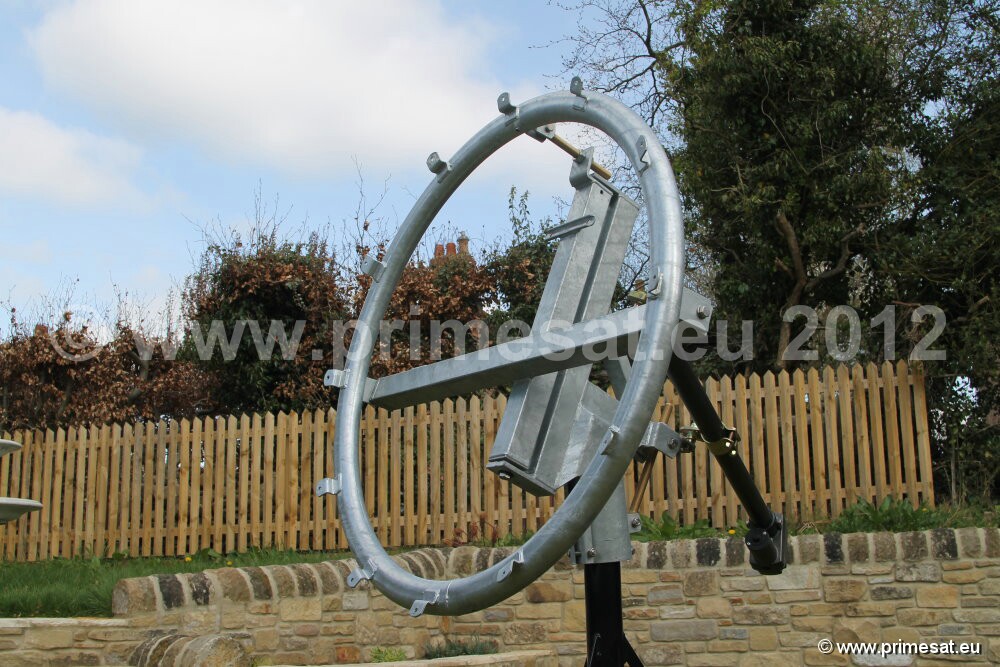

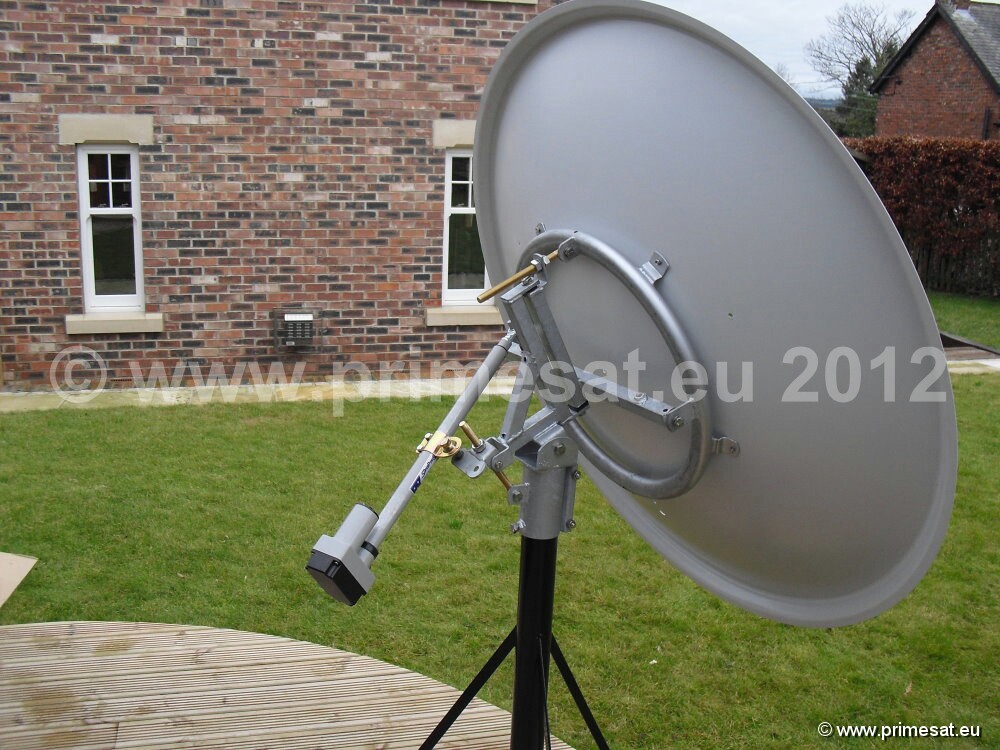

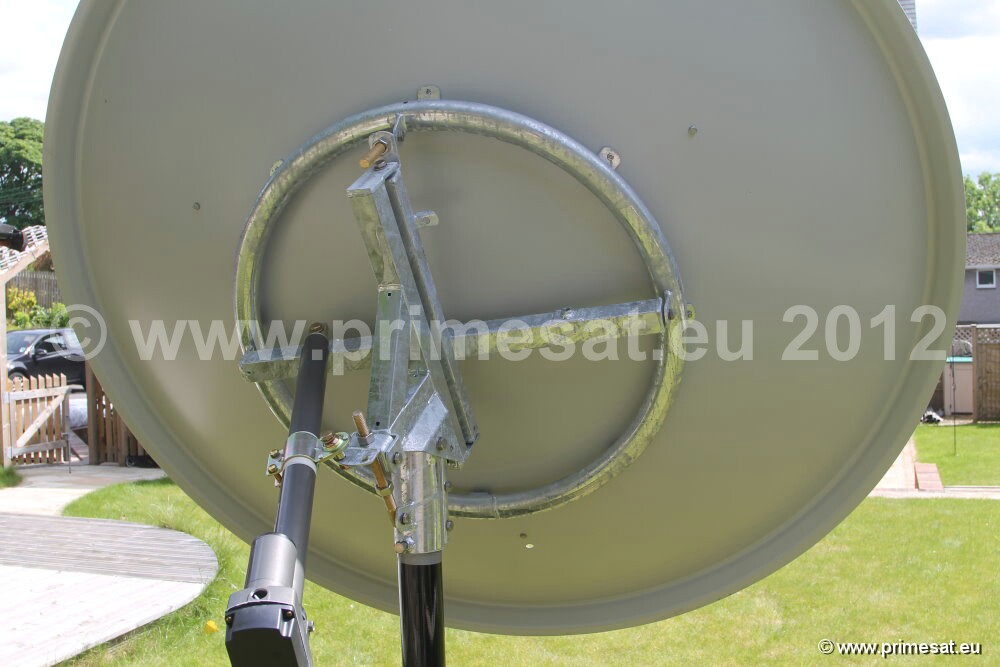

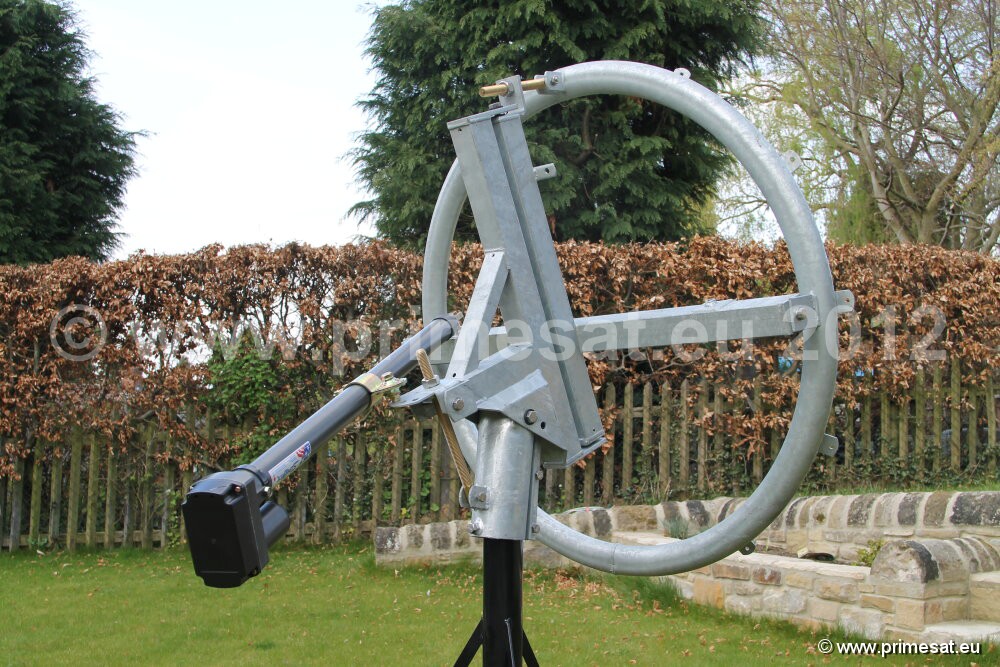

The polar mount is shown bolted to a dish in some of the pictures but the dish is not included here.
The dish with polar mount is available on the Primesat Motorised Dishes page.
Update - An inclined orbit version of this mount is also available.

Primesat PR1824HD

Polar mount for 1.6 – 2.0m prime focus dishes

This motor unit is a Primesat PR18HD polar mount with Jaeger Superjack actuator.
The polar mount is dipped galvanised and includes a large ring to fit the curved back of most prime focus dishes.
All of the bolts and nuts are stainless steel and the elevation adjusters are made of brass.
A genuine 36-inch heavy duty Jaeger Superjack QARL-3624+ actuator is an optional extra.
The collar is designed to fit a pole diameter of 100mm
The diameter of the ring is 865mm(hole center to hole center)
There are 8 holes in the ring, equally spaced to bolt to the dish reflector.
Part number PR1824HD is the polar mount including the actuator.
Part number PR18HD is the polar mount excluding the actuator.

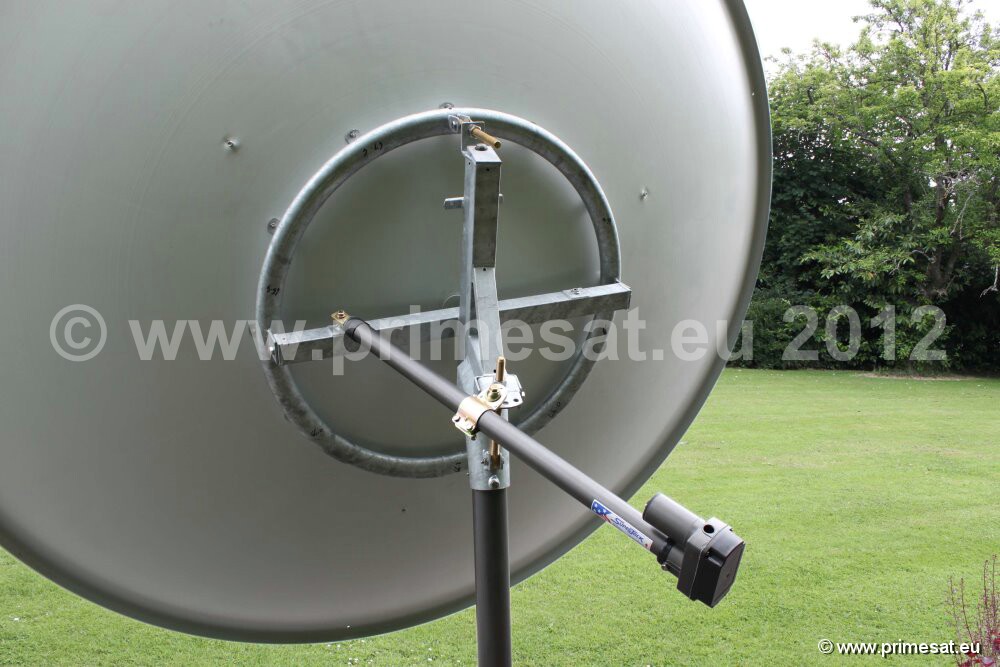

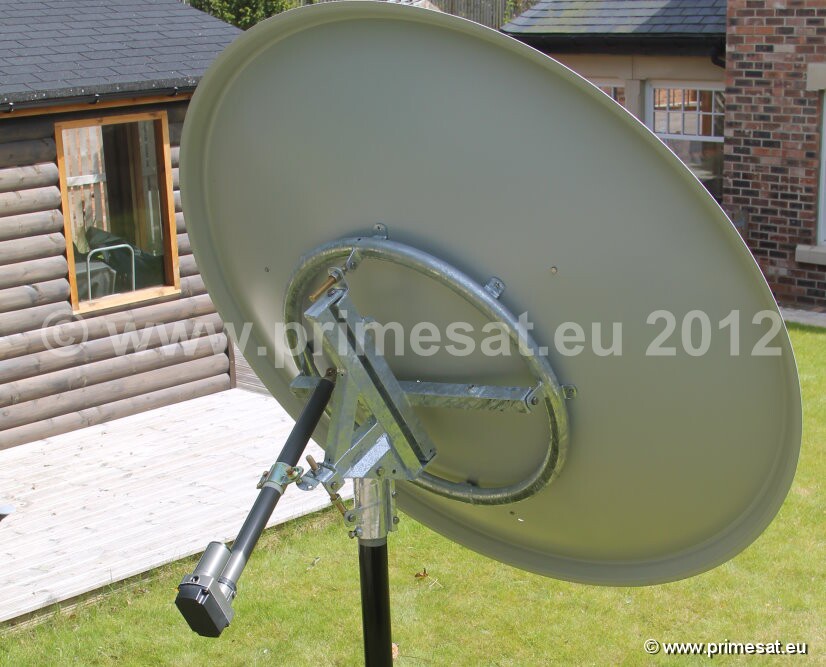

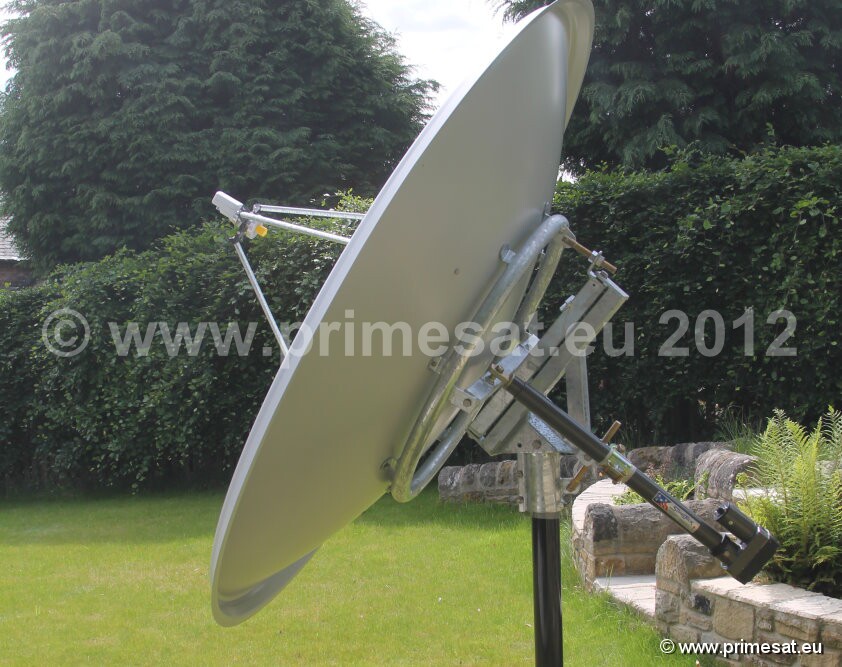

The polar mount is shown bolted to a dish in some of the pictures but the dish is not included here.
The dish with polar mount is available on the Primesat Motorised Dishes page.
Update - An inclined orbit version of this mount is also available.

Primesat PR2436HD

Polar mount for 2.1 – 2.5m prime focus dishes

This motor unit is a Primesat PR24HD polar mount with Jaeger Superjack actuator.
The polar mount is dipped galvanised and includes a large ring to fit the curved back of most prime focus dishes.
All of the bolts and nuts are stainless steel and the elevation adjusters are made of brass.
A genuine 36-inch heavy duty Jaeger Superjack QARL-3636+ actuator is an optional extra.
The collar is designed to fit a pole diameter of 100mm
The diameter of the ring is 1090mm(hole center to hole center)
There are 12 holes in the ring, equally spaced to bolt to the dish reflector.
Part number PR2436HD is the polar mount including the actuator.
Part number PR24HD is the polar mount excluding the actuator.
The polar mount is shown bolted to a dish in some of the pictures but the dish is not included here.
The dish with polar mount is available on the Primesat Motorised Dishes page.
Update - An inclined orbit version of this mount is also available.
